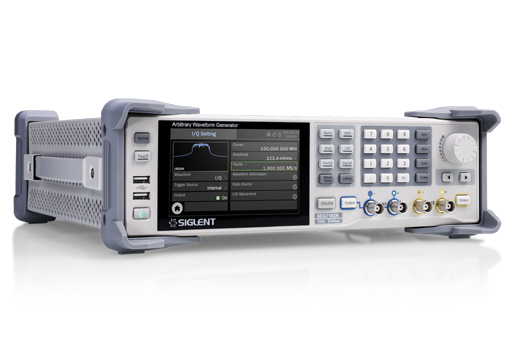

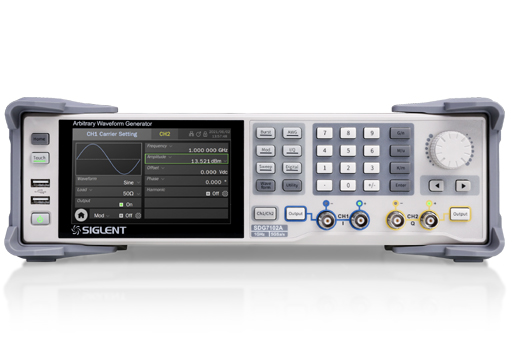

Generatore di funzioni arbitrarie 350 MHz, display touch screen da 5'', 5 GSa/s, 2 CH, memoria fino a 512 Mpts.
Number of channels: 2 differential/single-ended
Bandwidth: 350 MHz
Sample rate: 5 GSa/s
Vertical resolution: 14-bit
Arbitrary waveform: 0.01 Sa/s ~ 2.5 GSa/s sample rate || 24pts ~ 512 Mpts/ch memory depth, with segment editing and playback
Vector signal (Opt.): 500 MS/s max symbol rate || Carrier DC ~ 1 GHz settable. Includes modulation modes such as ASK, PSK, FSK, and QAM. EasyIQ software provides vector signal creation and editing
Continuous waveform: up to 1 GHz, supports harmonic generation function
Pulse: min pulse width 1 ns, min edge 500 ps pulse with low jitter, the rise/fall edge is independently fine adjustable, and the pulse width is fine adjustable
Noise: bandwidth 1 mHz ~ 1 GHz adjustable
PRBS: bit rate 1 ?bps ~ 312.5 Mbps, length PRBS3 ~ PRBS32
Complex signal generation: supports internal/external modulation, AM, FM, PM, PWM, FSK, PSK, ASK, etc. Supports sweep, burst
Dual-channel function: interchannel tracking, coupling and copying. Dual-channel superposition function. Supports mutual modulation between channels
Output range: 24 Vpp analog output superimposed ± 12 V DC offset, supports a maximum output range of ± 24 V (48 V)
Digital bus(Opt.): 16-bit, LVTTL or LVDS output. Bit rate 1?bps ~ 1 Gbps

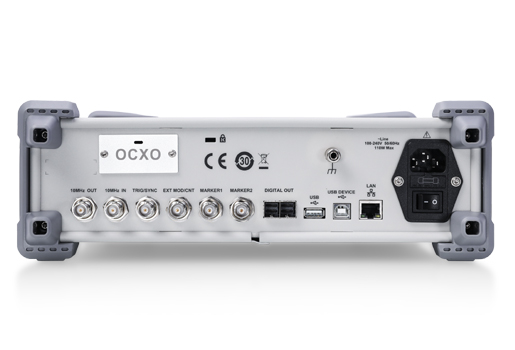

Interface: USB 2.0 Host x3, USB 2.0 Device(USBTMC), LAN 10M/100M(VXI-11)/Telnet/Socket/WebServer, EXT MOD/CNT, 10MHz IN, 10MHz OUT, Markerx2, Trigger In/Out
5" TFT-LCD with capacitive touch screen (800x480)
Supports mouse operation, webserver, SCPI control
Datasheet: Download
