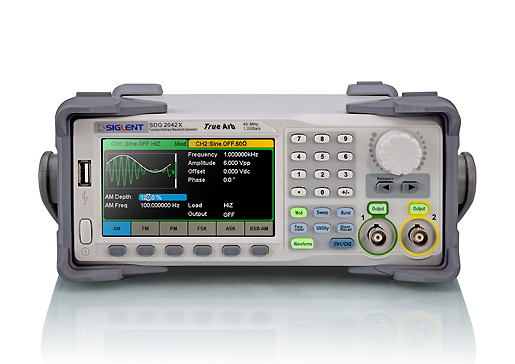

80 MHz arbitrary function generator, 4.3'' touch screen display, 1.2 GSa/s, 2 CH, up to 8 Mpts memory.
Bandwidth: 80 MHz
Num. of channels: 2
Sampling rate: 1.2 GSa/s (4X interpolation)
Vertical resolution: 16 bit
Max. amplitude: ±10 V
Display: 4.3'' touch screen display, 480 x 272 x RGB
Interface:
- standard: USB Host, USB Device, LAN
- optional: GPIB (USB-GPIB adaptor)
Innovative TrueArb technology, based on a point-by-point architecture, supports any 8pts~8Mpts Arb waveform with a sampling rate in range of 1 μSa/s ~ 75 MSa/s
Innovative EasyPulse technology, capable of generating lower jitter Square or Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK and PWM
Sweep and Burst function
High precision frequency counter
Dimensions: 260 x 107 x 295 mm
Weight: 3.43 kg
Datasheet: Download
