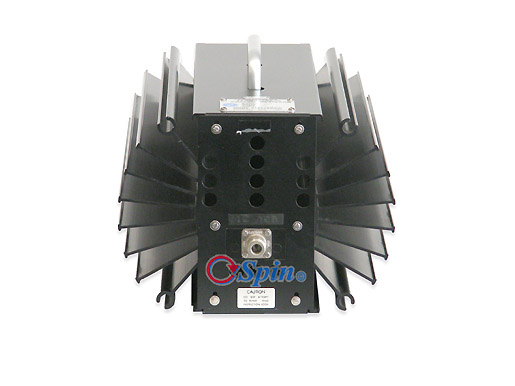

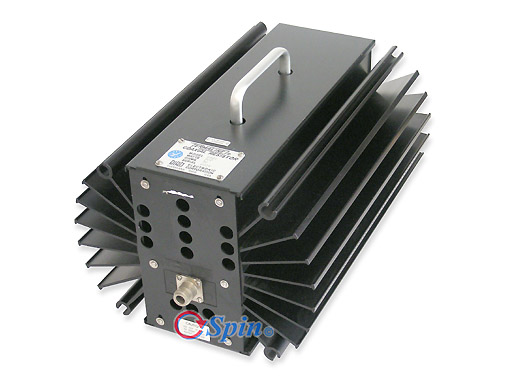

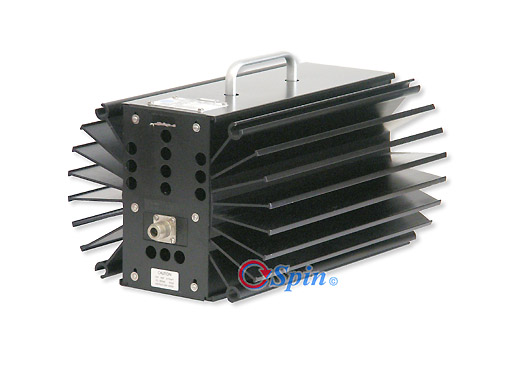

Load 500 W, air cooled.
The indicated shipment price may vary according to the number of boxes.

Power rating: 600 W vertical or 500 W horizontal, continuous
Frequency range: from DC to 2500 MHz
Impedance: 50 Ω nominal

- 1.1 max. from DC to 1000 MHz
- 1.25 max. from 1000 to 2500 MHz

Ambient temperature range: -40° to +45°C
Connector: N female
Load coolant: dry, convection air cooled
Operating position: horizontal or vertical
Finish: semi-gloss black enamel

Dimensions: 336 x 235 x 216 mm
Weight: 6 kg
