EMCO

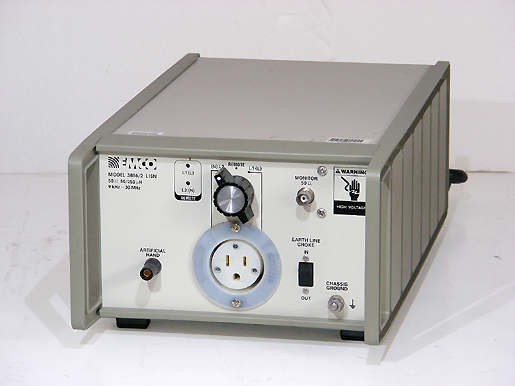

3816-2NM
Single phase LISN, 9 kHz - 30 MHz, 16 A.
The indicated shipment price may vary according to the number of
boxes.
Frequency range: 9 kHz to 30 MHz
Maximum current: 16 A
Maximum voltage: 125 VAC line to ground
Network inductance impedance: 50 μH / 250 μH, 50 Ω
Power in connector: customer specified plug
Power out connector: NEMA
Lines plus ground: 2
Power source frequency 60 Hz
Dimensions: 222 x 381 x 152 mm
Weight: 4.9 kg
