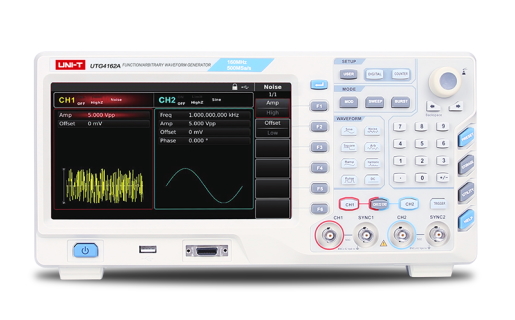

Generatore di funzioni , 160 MHz, 500 MSa/s, 2 CH, 16 bit, 32 Mpts.
Max. frequency: 160 MHz
Channels: 2
Sampling rate: 500 MSa/s
Wveforms: sine, square, ramp, harmonic, pulse, noise, DC voltage, arbitrary
Working modes: output on/off, continuous, modulation, sweep, burst
Modulation types: AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, QAM
Display: 8" TFT LCD, WVGA (800x480)
Weight: 4.8 kg
Dimensions: 405 x 225 x 265 mm
Datasheet: Download
