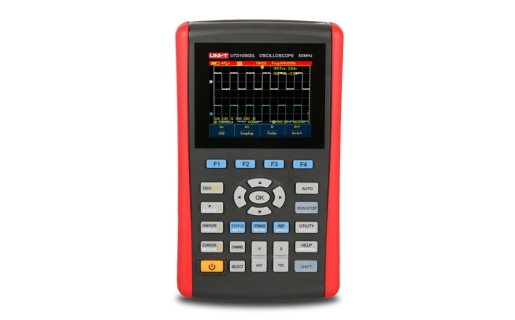

Oscilloscopio digitale portatile con DMM, 2 canali, 50 MHz, 250 MSa/s, memoria fino a 12 kpts.
Bandwidth: 50 MHz
Channels: 2
Sampling rate: 250 MSa/s
Mem. depth: 12 kpts
DMM specs:
- VDC: range 400mV/4V/40V/400V
- VAC: range 400mV/4V/40V/400V
- IDC: range 400uA/4000uA/40mA/4000mA/4A
- IAC: range 400uA/4000uA/40mA/4000mA/4A
- R: range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
- C: range 51.2nF/512nF/5.12uF/51.2uF/100uF
- Display counts: 3999
Std. interface: Mini USB
Display: 3.5" TFT LCD, 320x240
Weight: 0.9 kg
Dimensions: 199 x 118 x 49 mm
Datasheet: Download
