Generatore RF, da 9 kHz a 13.6 GHz, da -130 a +25 dBm, risoluzione 0.001 Hz.
Frequency: 13.6 GHz
0.001 Hz frequency setting resolution
Level setting range: -130 dBm ~ 25 dBm
Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
Level error ≤ 0.7 dB (typ.)
Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
Single pulse, double pulse and pulse train generator (option)
The power meter control kit can easily use the power meter to measure power, control power output and correct line loss

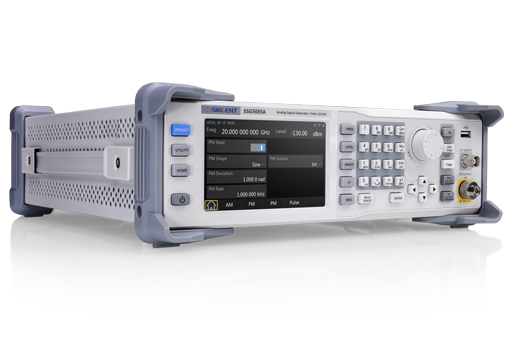

5" TFT capacitive touch screen, mouse and keyboard supported
Web browser remote control on PC and mobile terminals

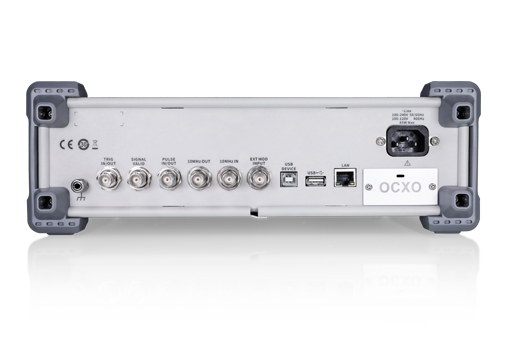

Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet)
Optional interface: GPIB
