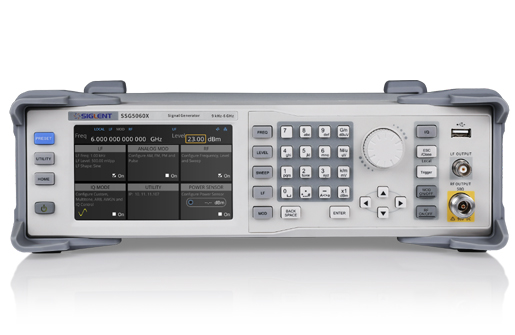

Generatore RF, da 9 kHz a 4 GHz, da -140 a +26 dBm, risoluzione 0.001 Hz.
Frequency up to 4 GHz
0.001 Hz frequency setting resolution
Maximum output power up to +26 dBm (typ.)
Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)
User programmable flatness correction
Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
Single pulse, double pulse and pulse train generator (option)
Built-in digital communication standard waveform files such as 5G-NR,LTE, WCDMA, WLAN, Blue-Tooth, CDMA
USB-power meter measurement
5 inch TFT capacitive touch screen, mouse and keyboard supported
Web browser remote control on PC and mobile terminals
Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
