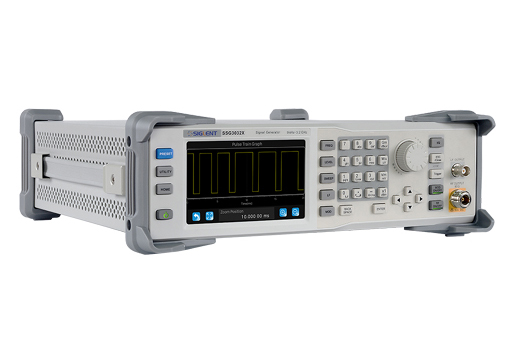

Generatore RF, da 9 kHz a 2.1 GHz, da -110 a +13 dBm, risoluzione 0.01 Hz, modulazione I/Q esterna.
Frequency up to 2.1 GHz
0.01 Hz frequency setting resolution
Level output from -110 dBm to +13 dBm
Maximum level up to +20 dBm (typ.)
Phase Noise : -110 dBc/ Hz @ 1 GHz , 20 kHz offset (typ.)
Level accuracy ≤0.7 dB (typ.)
Provides AM, FM, &PM analog modulation with internal, external or Int+Ext source
Pulse modulation, on/off ratio ≥70 dBc
Pulse train Generator (option)
External IQ modulation with SDG6000X as the baseband IQ signal
USB-power meter measurement kit
5 inch TFT capacitive touch screen, Mouse and keyboard supported
Web Browser Remote Control on PC and mobile Terminals
Standard interface include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB
Datasheet: Download
