SPD4306X

SIGLENT
SPD4306X

Alimentatore DC lineare programmabile a 4 canali, 400 W, risoluzione 1mV/1mA. CH1,CH2,CH3,CH4 max. tensione/corrente: 15V/1.5A, 30V/6A, 30V/6A, 15V/1A.

910.00
Iva Esc.
Il costo di trasporto indicato può variare in funzione del numero dei colli

Rated voltage: 32V, 12V, 30V
Rated output power: 240W, 285W, 400W

Up to four high-precision power supplies with independent controllable outputs, supporting CH2 and CH3 series and parallel connections

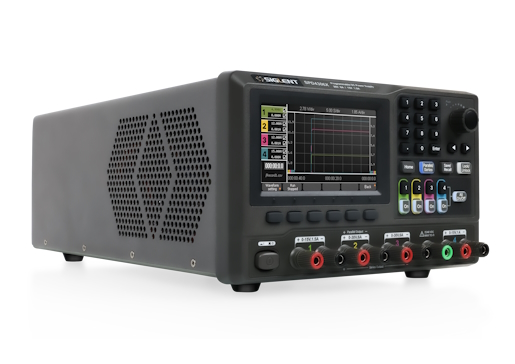

Clear graphical interface with waveform and timer display modes
5-digit voltage and current display with minimum resolution of 1mV, 1mA

Fast output response time: < 50us
The high current channel support remote voltage compensation sense function. The maximum compensation voltage is 0.6V

Overvoltage protection and overcurrent protection or safe and accurate operation

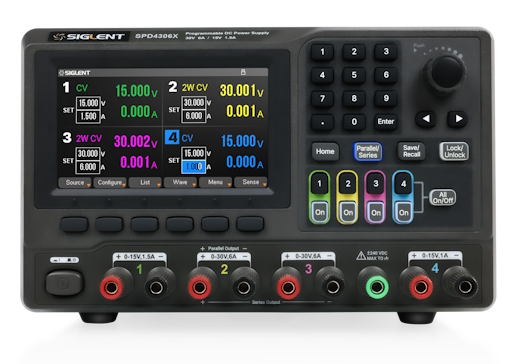

Equipped with a 4.3-inch TFT-LCD display (480x272 resolution)

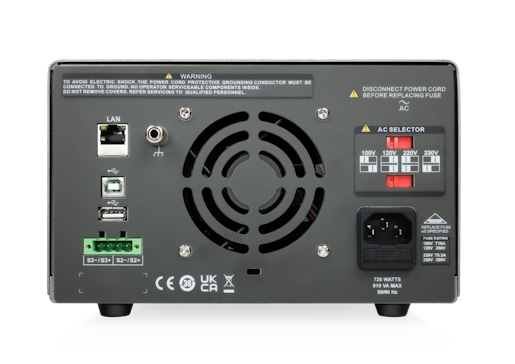

USB and LAN standard communication

USB-GPIB module is optional
Excellent channel density with up to 4 channels in a 3U half rack package
Internal data storage for setups and parameters

Embedded Web Server with instrument communication that doesn’t require software installation
Fully SCPI programming command set support as well as a LabView driver for remote control and system automation
