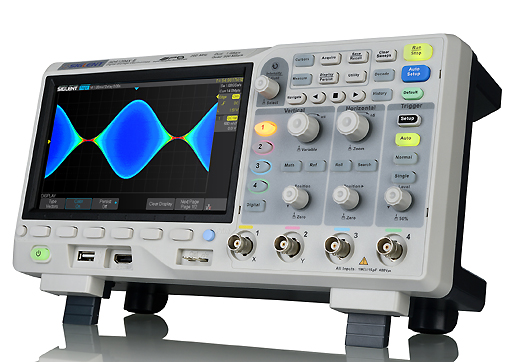

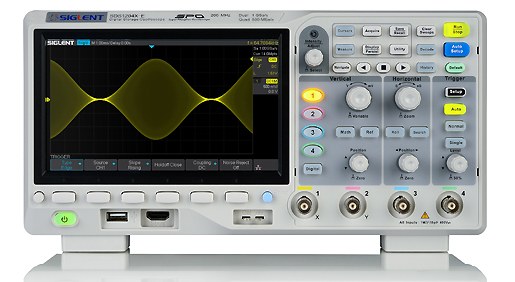

Oscilloscopio digitale, 4 canali 200 MHz, 1 GSa/s, memoria 14 Mpts, display 7", tecnologia SPO.
Bandwidth: 200 MHz
Sampling rate (max.): up to 1 GSa/s
Channels: 4
Memory depth (max.): 7 Mpts/CH (not interleave mode), 14 Mpts/CH (interleave mode)
Waveform capture rate (max.): 100'000 wfm/s (normal mode), 400'000 wfm/s (sequence mode)
Trigger type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial trigger and decoder (standard): IIC, SPI, UART/RS232, CAN, LIN
16 digital channels (option): maximum waveform capture rate up to 1 GSa/s, record length up to 14 Mpts/CH
USB AWG module (option): one channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts
Bode plot: minimum start frequency of 10 Hz, minimum scan bandwith of 500 Hz, maximum scan bandwidth of 120 MHz (dependent on oscilloscope and AWG bandwidth), 500 maximum scan frequency points
USB WIFI adapter (option): 802.11b/g/b, WPA-PSK, the adapter must be supplied by Siglent to ensure working

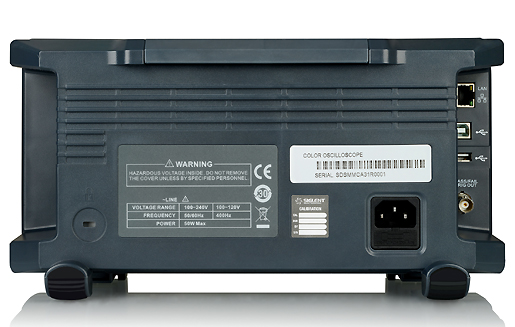

I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (std): 4 pcs passive probe PP510
Display 7'' TFT-LCD (800x480)
Weight: 2.6 kg
Datasheet: Download
