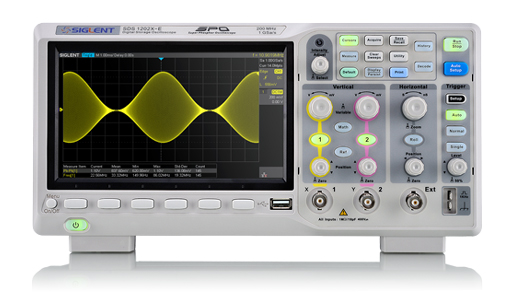

SDS1202X-E

Bandwidth: 200 MHz
Real-time sampling rate: up to 1 GSa/s

New generation of SPO technology
-> Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s(sequence mode)
-> Supports 256-level intensity grading and color display modes
-> Record length up to 14 Mpts
-> Digital trigger system

Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
Serial bus triggering and decode, supports protocols IIC, SPI, UART, RS232, CAN, LIN ?Standard?
Video triggers and supports HDTV

Low background noise, supports 500 μV / div to 10 V / div voltage scales
10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event.

History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
Automatic measurement function on 38 parameters, supports Statistics, Gating measurement, Math measurement, History measurement and Ref measurement 1M points FFT
True measurement and math to all of sample 14M points Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)

Large 7 inch TFT-LCD display with 800x480 resolution
Multiple interface types: USB Host, USB Device (USB-TMC), LAN (VXI-11), Pass / Fail, Trigger Out

Supports SCPI remote control commands
Supports Multi-language display and embedded online help

Dimensions: 312 x 134 150 mm
Weight: 2.5 kg

Datasheet: Download
