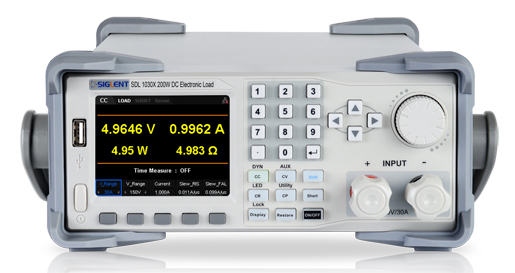

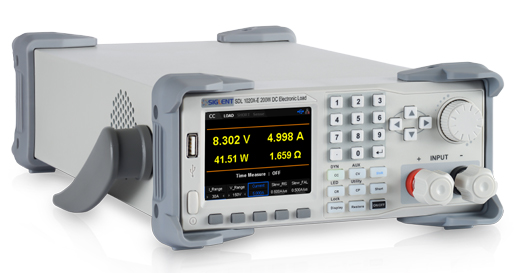

Carico elettronico, 0-30 A, 0-150 V, 200 W, risoluzione 1mV/1mA.
Input voltage: 0 - 150 V
Input current: 0 - 30 A
Input power: 200 W
Dynamic mode frequency: 25 kHz (CC), 12.5 kHz(CP)
Current rise time range: 0.001 A/us - 2.5 A/us
Min. readback resolution: 1 mV, 1 mA
Static modes / Dynamic mode: CC / CV / CR / CP
Short-circuit, Battery test, CR-LED mode, factory test functions
4-wire SENSE compensation mode function
List function supports editing as many as 100 steps
Program function supports 50 groups of steps
OCP, OVP, OPP, OTP and LRV protection

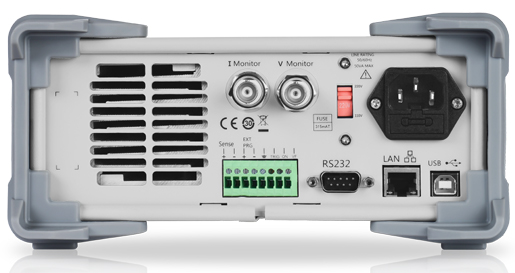

Built-in RS232/USB/LAN communication interface, USB/GPIB module (optional)
Includes PC software: Supports SCPI, LabView driver
