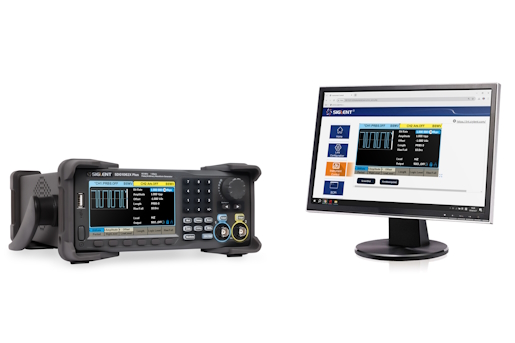

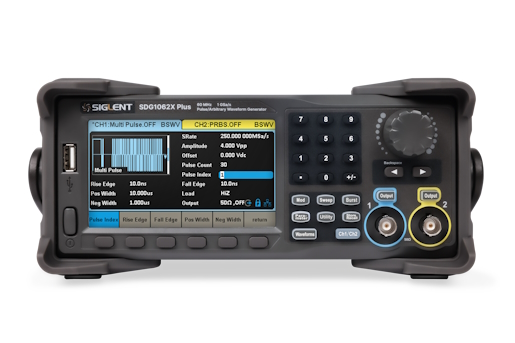

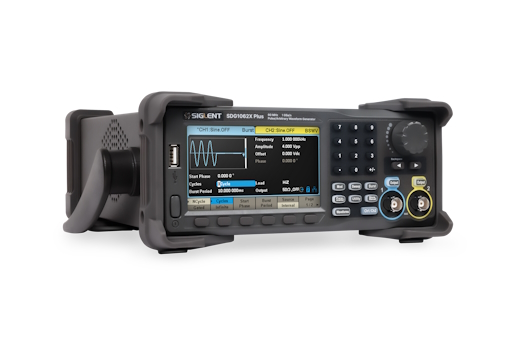

Generatore di funzioni arbitrario 60 MHz, 1 GSa/s, 2 CH, 8 Mpts.
Max. output frequency: 60 MHz
Output channel: 2
Sample rate: 1 GSa/s
Arbitrary waveform length: 1 Mpts/CH
Frequency resolution: 1 µHz
Vertical resolution: 16 bits
Waveform: Sine, square, ramp, pulse, Gaussian noise
Modulation: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
Standard interface: USB Host and Device, LAN (GPIB optional)
Dimensions: 260 x 107 x 295 mm
