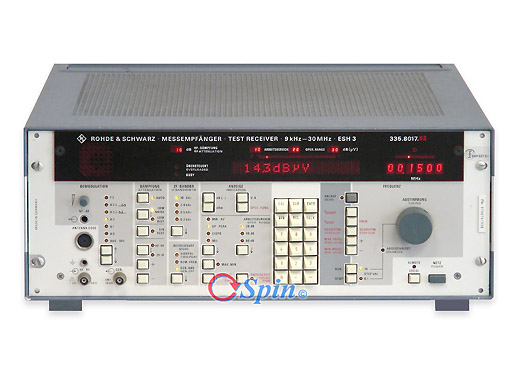

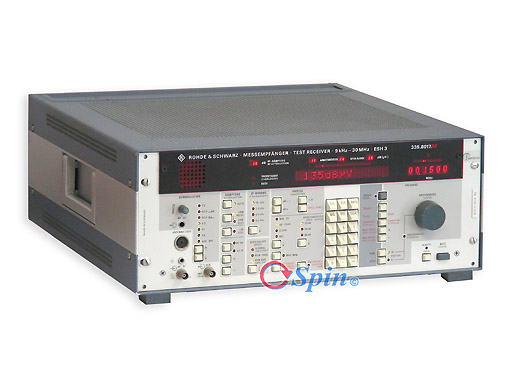

ROHDE&SCHWARZ
ESH3
Ricevitore di misura per EMC, banda 9 kHz - 30 MHz. Misura di tensione, intensità di campo, corrente RF, rumore a larga banda ed attenuazione tra porte. Include generatore tracking. Fornito con calcolatore di controllo (PCA5) con software per EMC e monitoraggio spettro.
2800.00€
Iva Esc.
Il costo di trasporto indicato può variare in funzione del numero dei
colli
It is suitable for manual and programmed use as a:
- field strength meter in conjunction with suitable test antennas
- selective RF-voltmeter (in conjunction with a current probe, it can also measure RF currents)
- system unit in automatic test systems (only with option)
Frequency range: 9 kHz to 30 MHz
Sensitivity range: -30 to +137 dBµV
4 selectable IF bandwidths: 0.2 / 0.5 / 2.4 / 10 kHz
Average, peak and quasi peak indication to CISPR16 and VDE0876 with programmable measuring times
75 MHz broadband IF output for panoramic display (for example spectrum monitor EZM) or spectrum analyzer
Digital level indication in selectable units
Measurement of frequency offset, frequency deviation and modulation depth
Dimensions: 490 x 207 x 515 mm
Weight: 25,5 kg
